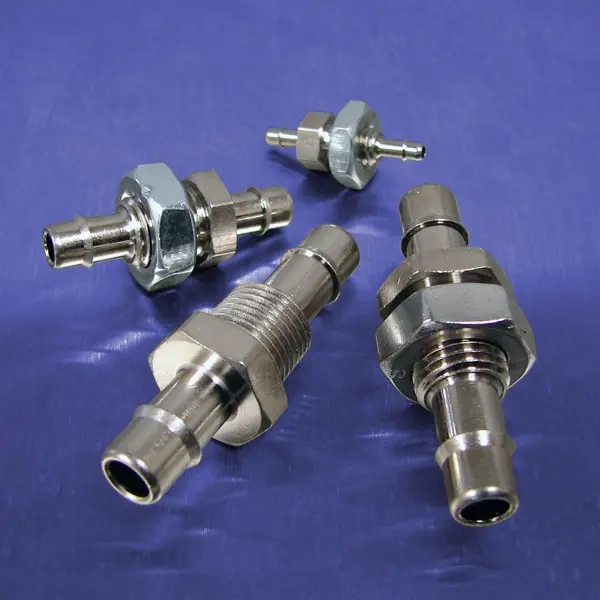

Bulkhead Fittings (Barb to Barb)

Click image to enlarge

Pneumadyne's barbed Bulkhead Fittings feature a single-barb design which provides a tighter grip and seal than conventional barb fittings. Polyurethane tubing relaxes on the shank behind the barb ensuring a permanent installation without the need for clamps. Choose from a variety of sizes to fit application requirements.

  • Electroless nickel plated for corrosion resistance
  • Single barb design provides a tight grip & seal
  • Precision machined, high quality fittings
  • Larger thru-hole for maximized flow
  • Smoother tubing approach angle eases installation

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
