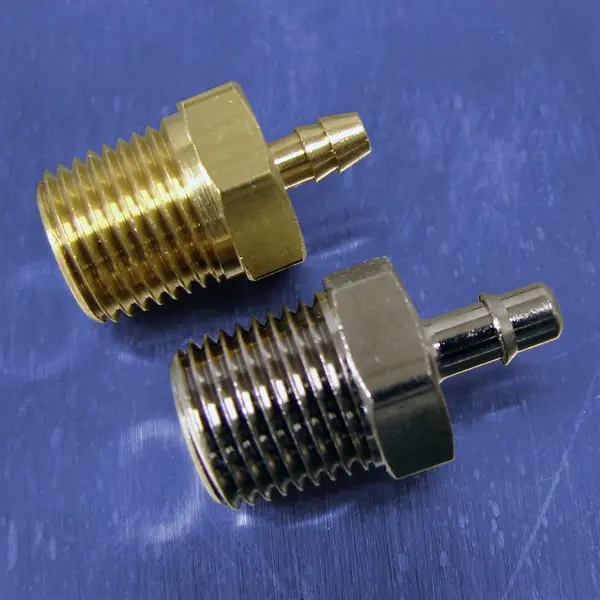

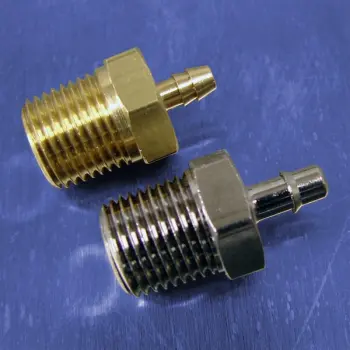

5/64 Tube Id Barb Straight Connectors (1/8 NPT)

Click image to enlarge

Several varieties of Straight Connectors are available from Pneumadyne to fit your application requirements. The EB20-1/8 features a consistently sharp single-barb design for a more permanent tubing connection. A smoother approach angle also eases tubing installation. This precision machined fitting is electroless nickel plated for corrosion resistance.

Part number BF-110-2 features a tapered 10-32 which provides a seal similar to pipe thread. A thicker thread wall also allows for a larger orifice which permits higher flow. These rugged brass fittings can be used in conventional straight female threads.

Features
  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
