5/64 Tube Id Barb Straight Connectors (10-32 UNF)

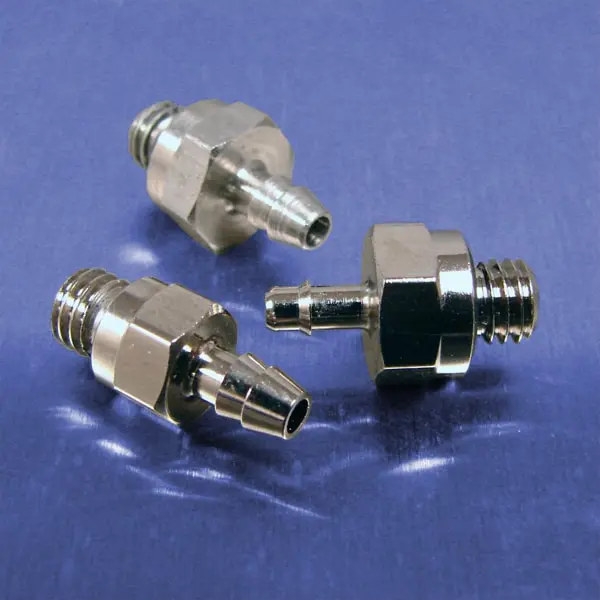

Click image to enlarge

Pneumadyne manufactures two styles of straight connectors to meet your application requirements. Our caputered o-ring design provides a superior seal ensuring a leak resistant fitting. When torqued down, the mechanical fit keeps the fittings tight and retains its position even under constant vibration. These high quality fittings are precision machined from brass and electroless nickel plated for corrosion resistance.

Features
  • Leakproof fit even when mated with a less than perfect sealing surface
  • Electroless nickel plated for corrosion resistance
  • Reliability of a metal-to-metal mechanical fit
  • Captured o-ring design provides a superior seal
  • High quality & precision machined

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

ProductsReturn to Top

Narrow Your Results By:

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
