3/32 Tube Id Barb Tees (10-32 UNF)

Click image to enlarge

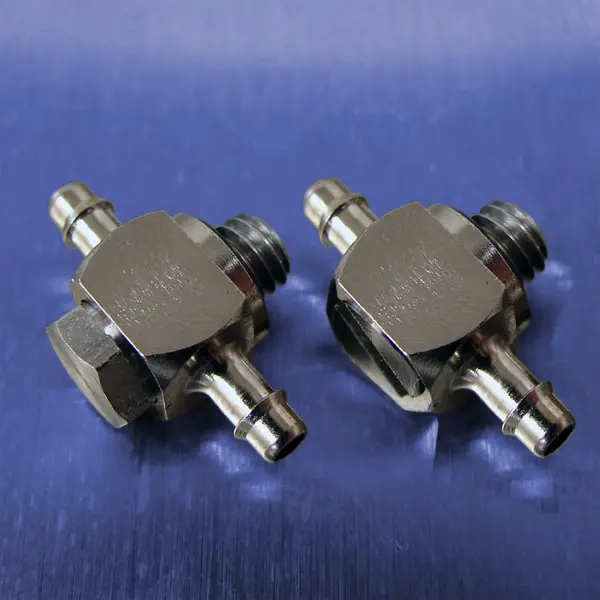

Two styles of Adjustable Tees are offered to ease installation and fit application requirements. Part number EA-T25-SLOT has a screwdriver slot for easy fitting alignment.

Pneumadyne's popular Pneu-Edge® fittings feature a consistently sharp, single-barb design for a tighter grip and seal than standard multiple barbs. Polyurethane tubing relaxes behind the barb offering a permanent installation without the need for clamps. The captured o-ring provides a superior seal ensuring a leak resistant fitting.

Features
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Recommended for use with Polyurethane tubing
  • Screwdriver slot eases fittin alignment

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
