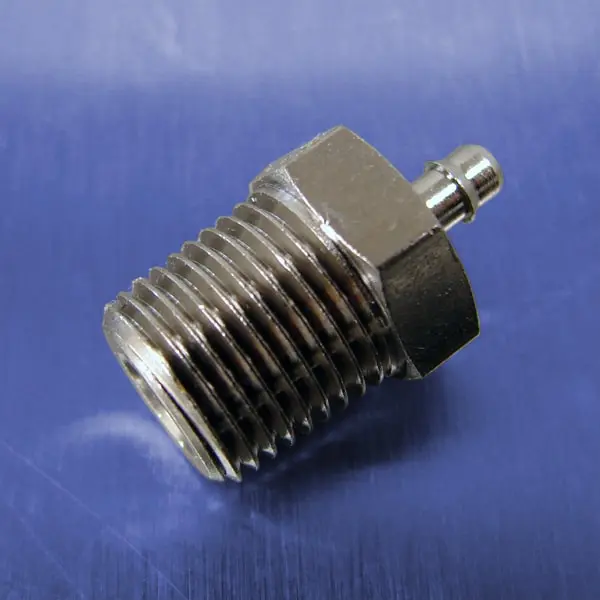

3/32 Tube Id Barb Straight Connectors (1/8 NPT)

Click image to enlarge

Pneumadyne's Straight Connector fittings feature a consistently sharp, single-barb design which provides a tighter grip and seal than traditional multiple barbs. A smaller shank behind the barb allows polyurethane tubing to relax resulting in a more permanent connection without the need for clamps. A larger thru-hole also permits maximized flow.

  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Consistently sharp single-barb design
  • High quality, precision machined fittings
  • Larger thru-hole fro a maximized flow path

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
