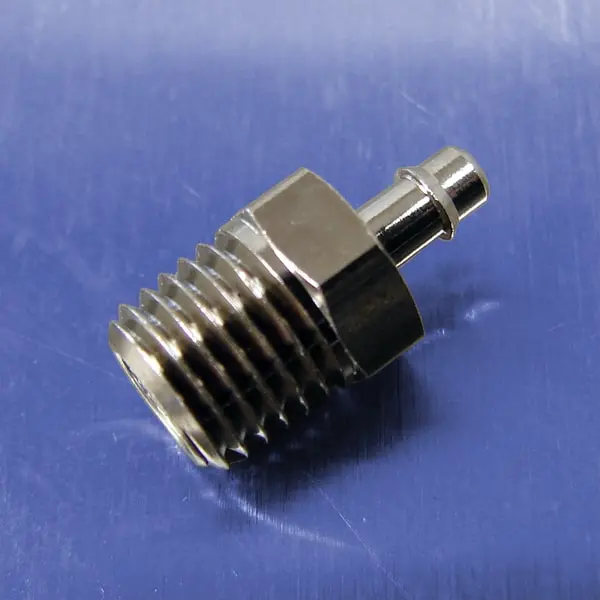

3/32 Tube Id Barb Straight Connectors (1/16 NPT)

Click image to enlarge

The consistently sharp, single-barb design of our Pneu-Edge® Straight Connectors provides a smoother approach angle which eases tubing installation. A smaller shank behind the barb allows polyurethane tubing to relax, resulting in a tighter grip and seal for a more permanent connection. Our precision machined brass fittings are electroless nickel plated for corrosion resistance.

  • Larger thru-hole for maximized flow
  • Consistently sharp single-barb design
  • High quality, precision machined fittings
  • Tighter grip and seal than multiple barbs
  • Electroless nickel plated for corrosion resistance

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
