3/16 Tube Id Barb Straight Connectors (1/8 NPT)

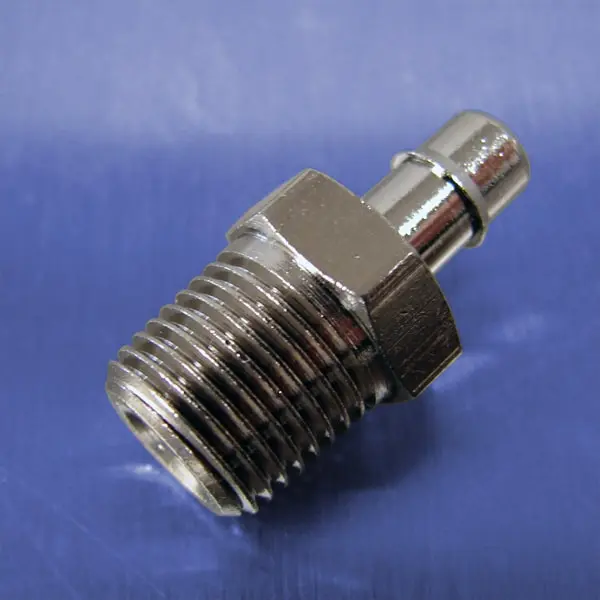

Click image to enlarge

Pneu-Edge® Straight Connectors feature a single-barb design which provides a tighter grip and seal than traditional multiple barb fittings. A smaller shank behind the barb allows polyurethane tubing to relax ensuring a permanent connection without the need for clamps. A smoother approach angle also eases tubing installation. These precision machined brass fittings are electroless nickel plated for corrosion resistance.

Features
  • Consistently sharp barbs for more permanenet tubing installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Precision machined, high quality fittings
  • Tighter grip and seal than traditional barbs

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Product FilesReturn to Top



Compliance
