3/16 Tube Id Adjustable Elbows (10-32)

Click image to enlarge

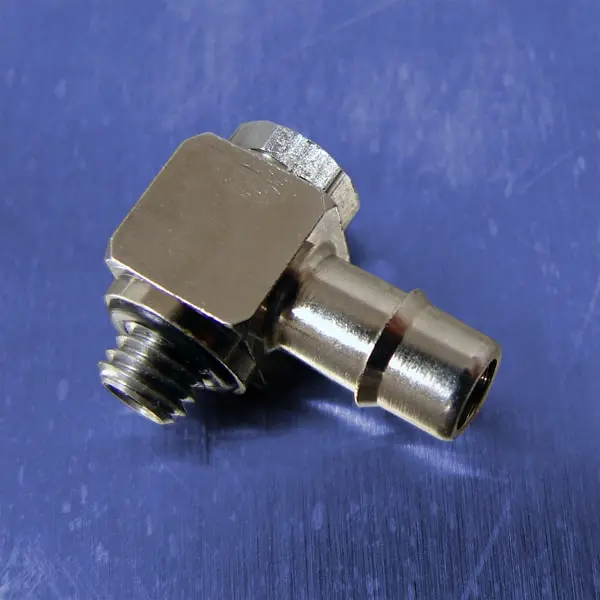

For installation convenience, two styles of Adjustable Elbows are available from Pneumadyne. Part number EA-LB50-SLOT features a screwdriver slot for fitting alignment.

Pneumadyne's Pneu-Edge® fittings feature a consistently sharp, single barb design for a tighter grip and seal than standard multiple barbs. A smaller shank behind the barb allows polyurethane to relax which ensures permanent installation without the need for clamps. The captured o-ring design provides a superior seal and ensures a leak resistant fitting.

Features
  • Larger thru-hole for maximized flow
  • Smoother tubing approach angle eases installation
  • Electroless nickel plated for corrosion resistance
  • Recommended for use with Polyurethane tubing
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
