1/8 Tube Id Barb Tees (10-32 UNF)

Click image to enlarge

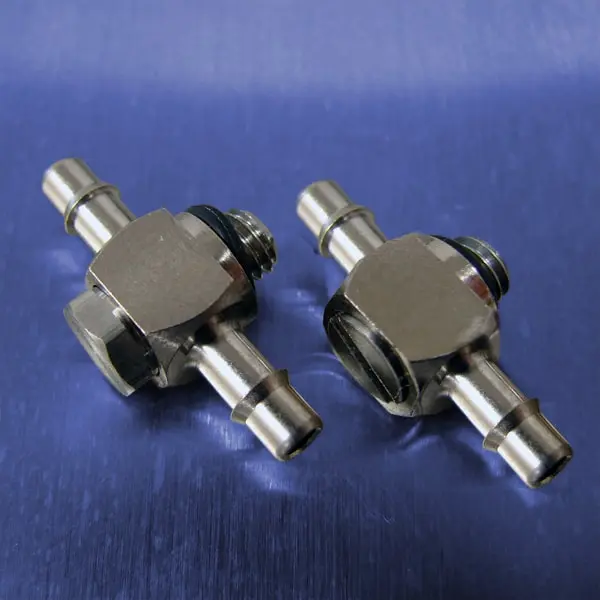

Pneumadyne manufactures two styles of Adjustable Tees to ease installation and fit application requirements. The EA-T30-SLOT features a screwdriver slot for alignment purposes.

Pneu-Edge® fittings feature a single-barb design that provides a tighter grip & seal than multiple barb fittings. A smaller shank behind the barb allows polyurethane tubing to relax resulting in a permanent installation without the need for clamps. Our captured o-ring provides a superior seal and ensures a leak resistant fitting even when mated with a less than perfect sealing surface.

  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • Electroless nickel plated for corrosion resistance
  • Screwdriver slot eases fittin alignment

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
