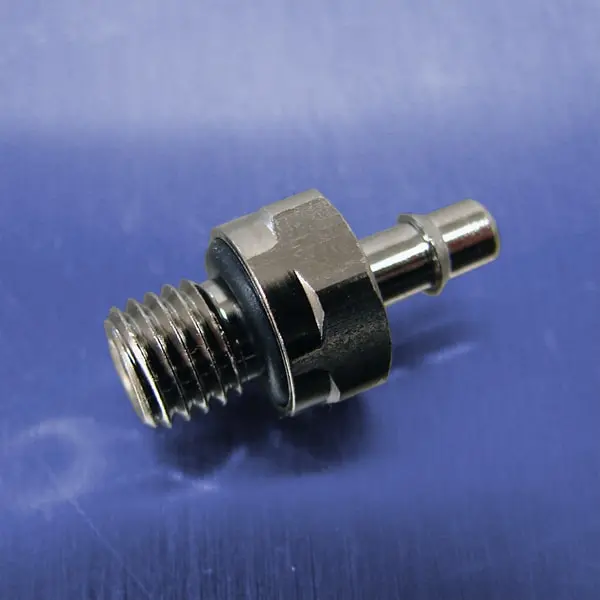

1/8 Tube Id Barb Straight Connectors (1/4-28 UNF)

Click image to enlarge

The consistently sharp, single-barb design of our Pneu-Edge® Straight Connectors provides a tighter grip and seal than standard multiple barbs. These precision machined fittings ensure permanent polyurethane tubing installation without the need for clamps. The captured o-ring design also provides a superior seal which ensures a leak resistant fitting even when installed in a less than perfect sealing surface.

  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • Captured o-ring design for a superior seal
  • High quality, precision machined fittings
  • Smoother tubing approach angle eases installation

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
