1/8 Tube Id Barb Straight Connectors (1/16 NPT)

Click image to enlarge

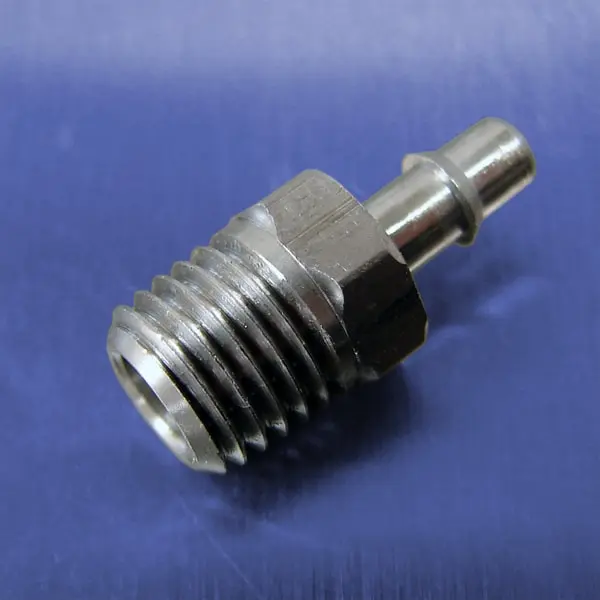

Pneumadyne's Pneu-Edge® Straight Connectors feature a single-barb design with a smoother approach angle which eases tubing installation. A smaller shank behind the barb also provides a tighter grip and seal resulting in a more permanent polyurethane tubing connection. Larger thru-holes also allow for a maximized flow path.

Features
  • Electroless nickel plated for corrosion resistance
  • High quality, precision machined fittings
  • Consistently sharp single-barb design
  • Larger thru-hole for maximized flow
  • Tighter grip and seal for permanent tubing installation

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Product FilesReturn to Top



Compliance
