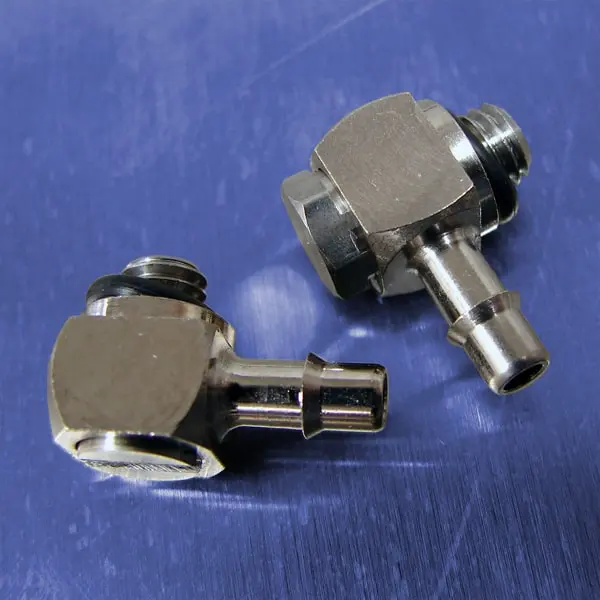

1/8 Tube Id Adjustable Elbows (10-32)

Click image to enlarge

Pneu-Edge Adjustable Elbows are available in two styles to ease installation and meet application requirements. Our EA-LB30-SLOT features a screwdriver slot and is ideal for applications with limited space. The single-barb design provides a tighter grip and seal than most multiple barb fittings. A smaller shank behind the barb allows polyurethane tubing to relax ensuring permanent installation without the need for clamps. A smoother approach angle also eases tubing installation. Our popular captured o-ring creates a superior seal and ensures a leak resistant fitting even when installed in a less than perfect sealing surface.

Features
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Smoother approach angle eases tubing installation
  • Recommended for use with Polyurethane tubing
  • Precision machined, high quality fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
