1/8 NPT Threads (Stainless Steel Straight Connectors)

Click image to enlarge

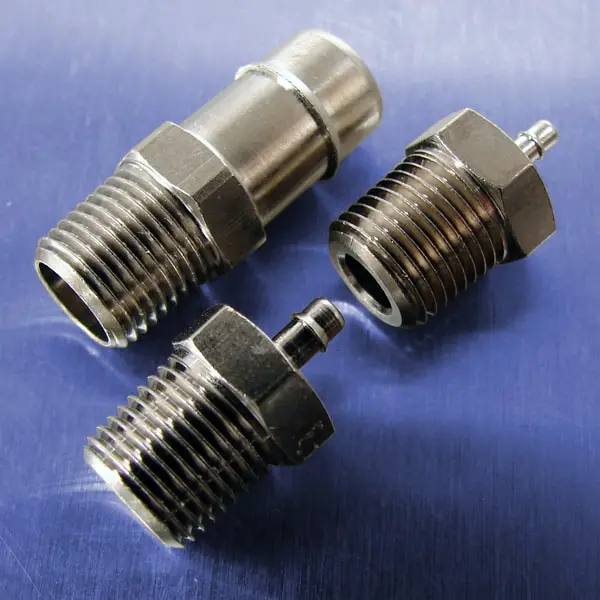

Pneumadyne's Pneu-Edge® Straight Connectors are also manufactured from 303 Stainless Steel and are ideal for use in corrosive environments. The single-barb design allows polyurethane tubing to relax, providing permanent installation without the need for clamps. A smoother approach angle eases tubing installation and a larger thru-hole maximizes flow.

Contact the factory for configurations not shown.

  • Smoother tubing approach angle eases installation
  • Single-barb design provides a tight grip & seal
  • 303 Stainless Steel
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
