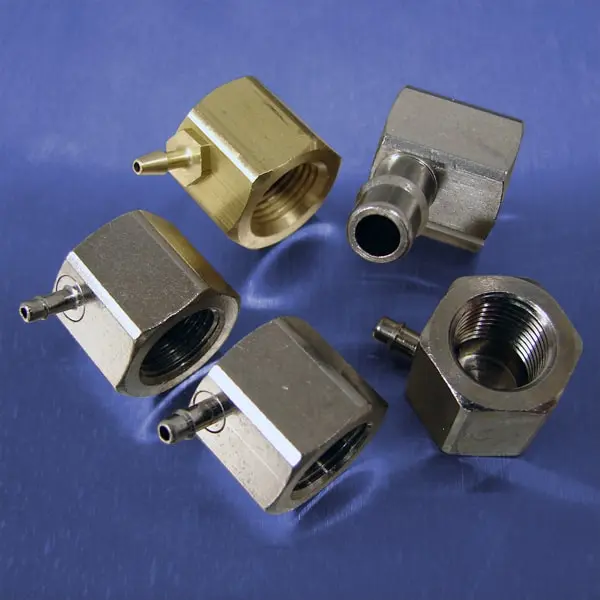

1/8 NPT (F) Thread to Barb Elbow Fittings

Click image to enlarge

Two styles of Fixed Elbows are available with barb sizes ranging from 1/16 to 1/4 tube id to meet your application requirements. Our Pneu-Edge® fittings (part numbers begin with EFLB) feature a single-barb design which provides a tighter grip and seal than conventional multiple barb fittings. These precision machined brass fittings are electroless nickel plated for corrosion resistance. Pneumadyne's traditional fittings (part numbers start with BF) are rugged brass and feature the multiple barb design.

Features
  • Solderless joint technology
  • Recommended for use with Polyurethane tubing
  • Variety of barb sizes to fit tubing requirements
  • Precision machined, high quality fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
