.170 Tube Id Barb Tees (10-32 UNF)

Click image to enlarge

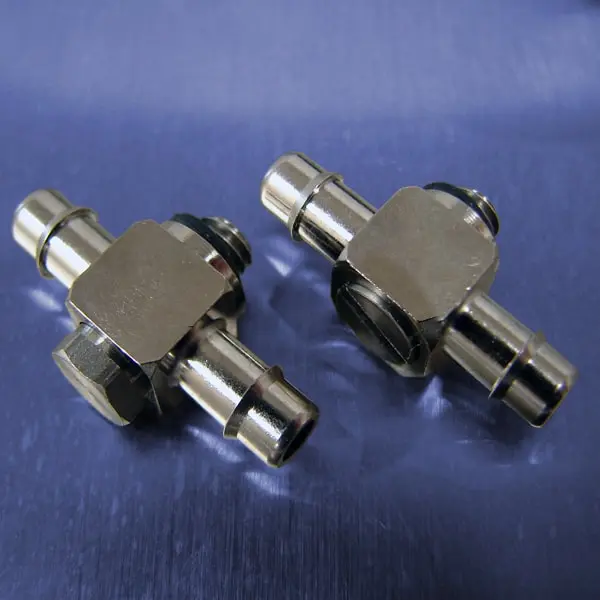

Pneu-Edge® Adjustable Tees are available in two styles to fit application requirements and ease installation. Part number EA-T40-SLOT features a screwdriver slot for fitting alignment purposes.

The single-barb design creates a tighter grip and seal than standard multiple barb fittings. A smaller shank behind the barb allows polyurethane tubing to relax, ensuring permanent installation. Our captured o-ring provides a superior seal for a leak resistant fitting even when installed in a less than perfect sealing surface.

  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • Smoother approach angle eases tubing installation
  • Precision machined, high quality fittings
  • Recommended for use with Polyurethane tubing
  • Screwdriver slot eases fitting alignment

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
