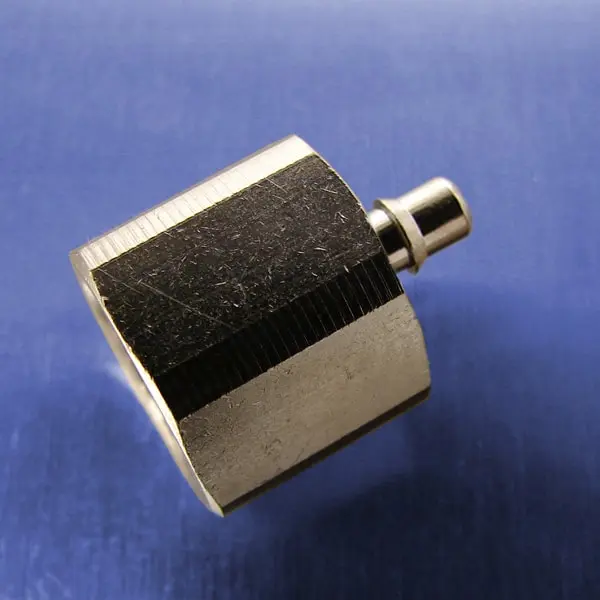

.170 Tube Id Barb Straight Connectors (1/4 NPT F)

Female Connectors manufactured by Pneumadyne feature a single-barb design for a tighter grip and seal than standard multiple barb fittings. Polyurethane tubing is able to relax behind the barb resulting in permanent tubing installation. These precision machined brass fittings are electroless nickel plated for corrosion resistance.

Features
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Recommended for use with Polyurethane tubing
  • High quality, precision machined fittings

Products

Narrow Your Results By:

Return to Top

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Return to Top

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Return to Top

Product Files


Return to Top



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
