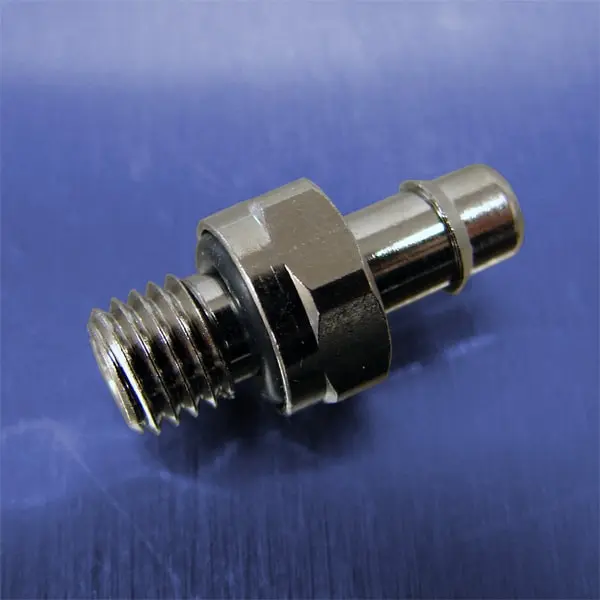

.170 Tube Id Barb Straight Connector (1/4-28 UNF)

Pneumadyne Straight Connector fittings provide a tighter grip and seal ensuring a more permanent polyurethane tubing installation without the need for clamps. Our captured o-ring design also provides a superior seal which ensures a leak resistant fitting even when mated with a less than perfect sealing surface.

Features
  • High quality, precision machined fittings
  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • Smoother tubing approach angle eases installation
  • Captured o-ring design ensures a leak resistant fitting

Products

Narrow Your Results By:

Return to Top

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Return to Top

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
