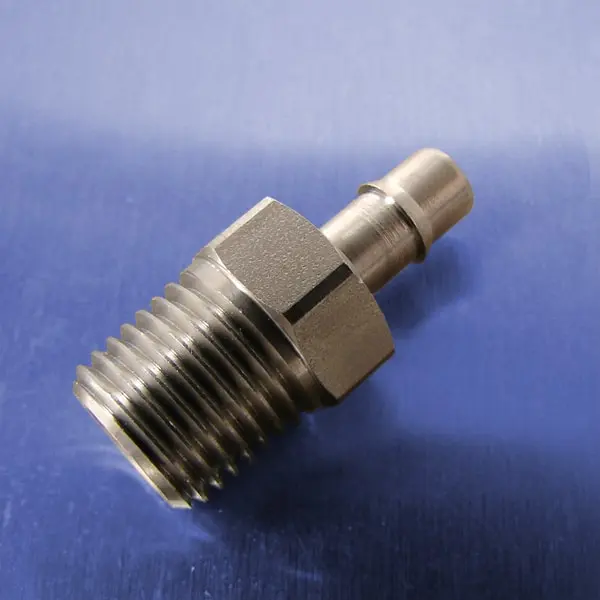

1/4 Tube Id Barb Straight Connectors (1/4 NPT)

Click image to enlarge

The single-barb design of Pneumadyne's Straight Connector fittings provides a tighter grip and seal than standard fittings. The smaller shank behind the barb allows polyurethane tubing to relax ensuring a permanent installation without the need for clamps. A smoother approach angle also eases installation.

  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • Precision machined, high quality fittings
  • Smoother tubing approach angle eases installation

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
