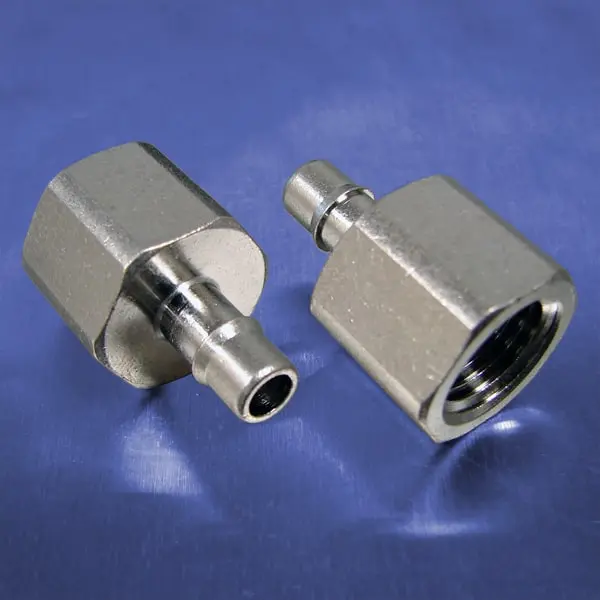

1/4 Tube Id Barb Straight Connectors (1/4 NPT F)

The single-barb design of our Female Connectors provides a tighter grip and seal than standard multiple barb fittings. A smaller shank behind the barb enables polyurethane tubing to relax ensuring a permanent installation without the use of clamps. A larger thru-hole also maximizes the flow path.

Features
  • Smoother tubing approach angle eases installation
  • Recommended for use with Polyurethane tubing
  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • High quality, precision machined fittings

Products

Narrow Your Results By:

Return to Top

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Return to Top

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Return to Top

Product Files


Return to Top



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
