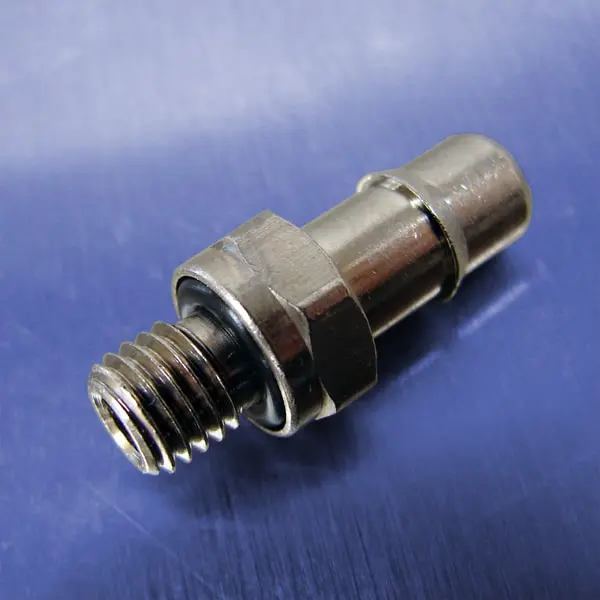

1/4 Tube Id Barb Straight Connectors (1/4-28 UNF)

Click image to enlarge

Pneu-Edge® fittings from Pneumadyne provide a tighter grip and seal ensuring permanent polyurethane tubing installation without the need for clamps. Our captured o-ring design provides a superior seal, even when mated with a less than perfect sealing surface, for a leak resistant fitting. The single-barb design features a larger thru-hole for maximized flow. A smoother approach angle also eases tubing installation.

Features
  • Electroless nickel plated for corrosion resistance
  • High quality, precision machined fittings
  • Captured o-ring design for a superior seal
  • Larger thru-hole for maximized flow
  • Consistently sharp, single-barb design

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Product FilesReturn to Top



Compliance
