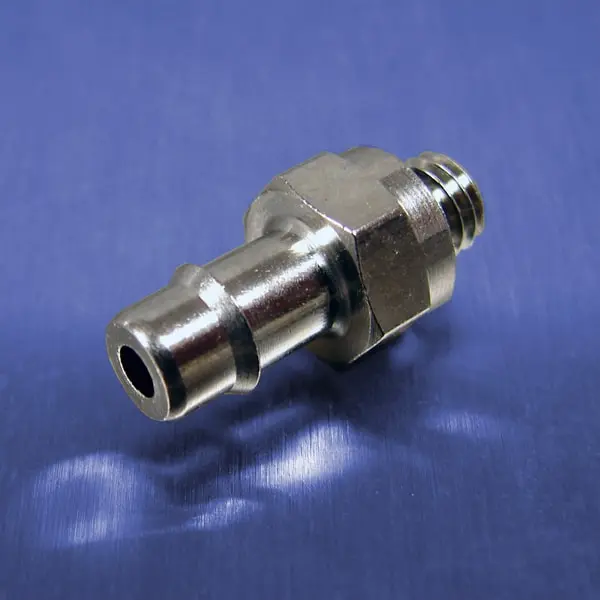

1/4 Tube Id Barb Straight Connectors (10-32 UNF)

Click image to enlarge

Recommended for use with polyurethane tubing, Pneumadyne's Pneu-Edge® fittings are precision machined for permanent installation without the need for clamps. The consistently sharp, single barb design provides a tighter grip and seal than standard multiple barbs. Our captured o-ring design also provides a superior seal and ensures a leak resistant fitting.

  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Captured o-ring design provides a superior seal
  • Precision machined

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
