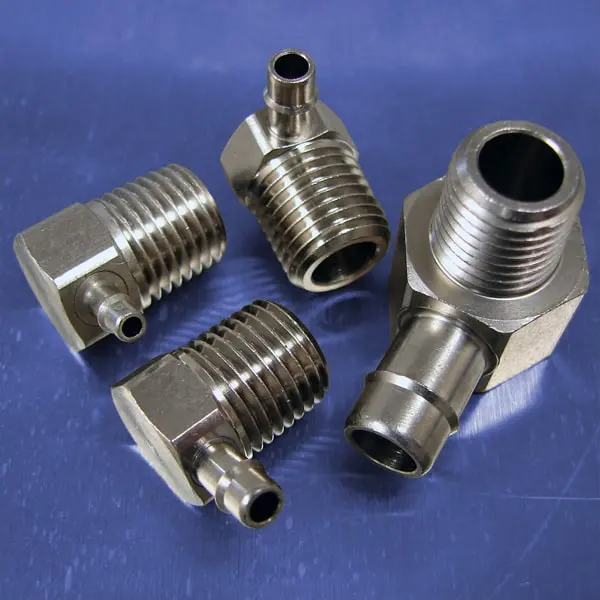

1/4 NPT Thread to Barb Elbow Fittings

Click image to enlarge

Nine barb sizes are available on our Fixed Elbows to fit your tubing requirements. These fittings feature our single-barb design for a tighter grip and seal than conventional multiple barbs. A smaller shank behind the barb allows polyurethane to relax and create a permanent installation. Pneumadyne's solderless joint technology eliminates pull-out potential and ensures straight barb alignment. These precision machined brass fittings are electroless nickel plated for corrosion resistance.

  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Recommended for use with Polyurethane tubing
  • Precision machined, high quality fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
