1/4 NPT (F) Thread to Barb Elbow Fittings

Click image to enlarge

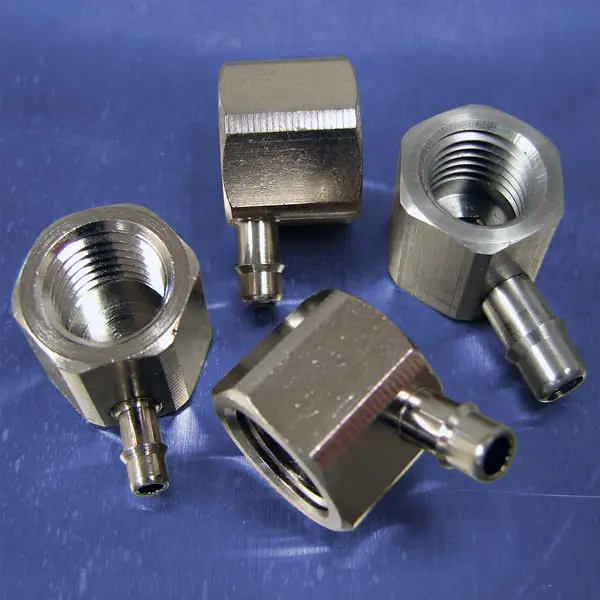

Pneumadyne's Fixed Elbows are available with barb sizes ranging from 1/16 to 3/8 tube Id to fit tubing requirements. These Pneu-Edge® fittings feature a single-barb design for a tighter grip and seal than multiple barbs. These precision machined fittings ensure permanent polyurethane tubing installation without the need for clamps. Our solderless join technology eliminates pull-out potential and ensures straight barb alignment.

  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
