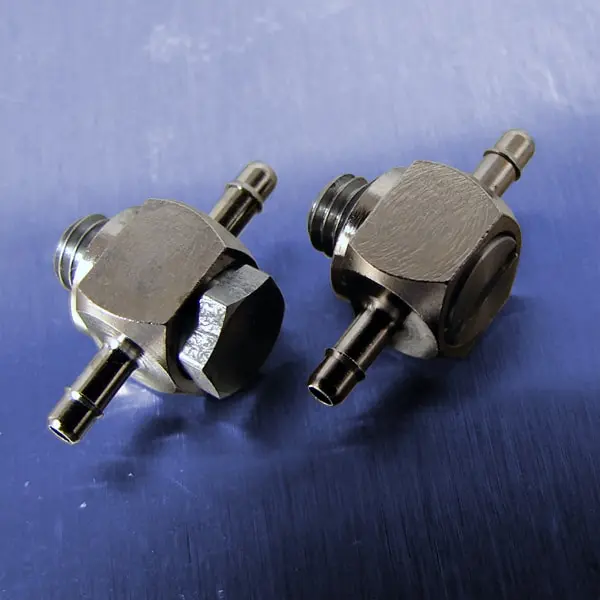

1/16 Tube Id Barb Tees (10-32 UNF)

Pneumadyne's Adjustable Tees are available in two styles to fit application requirements and ease installation. For limited space applications, our low profile slotted fitting (part number EA-T10-SLOT) is offered.

Our consistently sharp, single-barb design provides a tighter grip and seal for a more permanent installation than multiple barb fittings. The captured o-ring also provides a superior seal for a leak resistant fitting.

Features
  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Screwdriver slot for easy adjustment
  • Recommended for use with Polyurethane tubing

Products


CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
