1/16 Tube Id Barb Straight Connectors (1/8 NPT F)

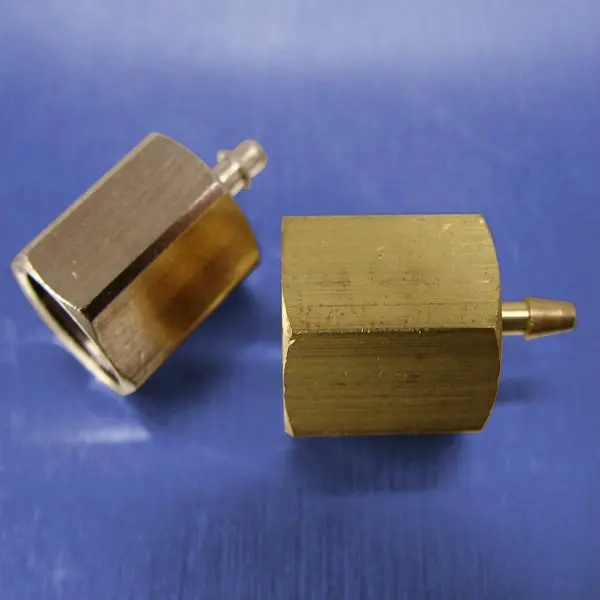

Pneumadyne manufactures several varieties of fittings to meet application requirements. Both styles shown are ideal for use with 1/16 Id Polyurethane tubing. Our popular Pneu-Edge® fitting, EFB10-1/8, is electroless nickel plated for corrosion resistance and features a consistently sharp, single-barb design. The rugged brass BF-062-2F offers the traditional 1/16 tube id barb.

Features
  • Precision machined
  • High quality
  • Electroless nickel plated for corrosion resistance
  • Rugged brass fittings

Products

Narrow Your Results By:

Return to Top

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Return to Top

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Return to Top

Product Files


Return to Top



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
