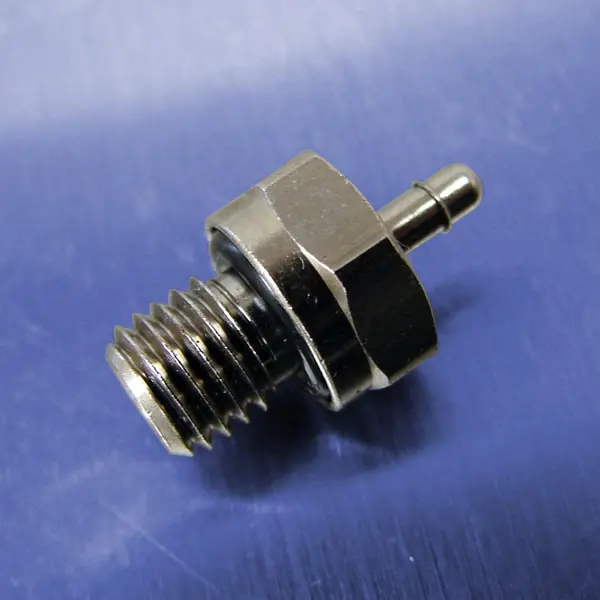

1/16 Tube Id Barb Straight Connectors (1/4-28 UNF)

Straight Connector fittings manufactured by Pneumadyne feature consistently sharp, single-barbs which ensure permanent polyurethane tubing installation without the need for clamps. The captured o-ring design provides a superior seal for a leak resistant fitting even when installed in a less than perfect sealing surface.

Features
  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Precision machined
  • Captured o-ring design provides a superior seal
  • Consistently sharp, single-barb

Products

Narrow Your Results By:

Return to Top

CAD Library

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Return to Top

Performance Data

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Return to Top

Product Files


Return to Top



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
