1/16 Tube Id Adjustable Elbows (10-32)

Click image to enlarge

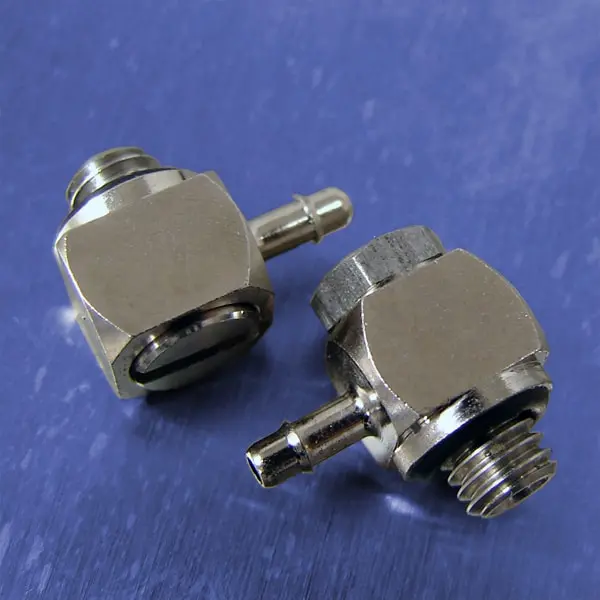

Pneumadyne's Adjustable Elbow fittings are available in two styles to fit application requirements and ease installation. For limited space applications, a low profile slotted fitting (part number EA-LB10-SLOT) is offered.

Our single-barb design provides a tighter grip and seal than standard multiple barb fittings. A smaller shank behind the barb allows polyurethane tubing to relax, ensuring a permanent installation. The captured o-ring also provides a superior seal even when mated with a less than perfect sealing surface.

Features
  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • Precision machined, high quality fittings

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Product FilesReturn to Top



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
