1/16 NPT Thread to Barb Elbow Fittings

Click image to enlarge

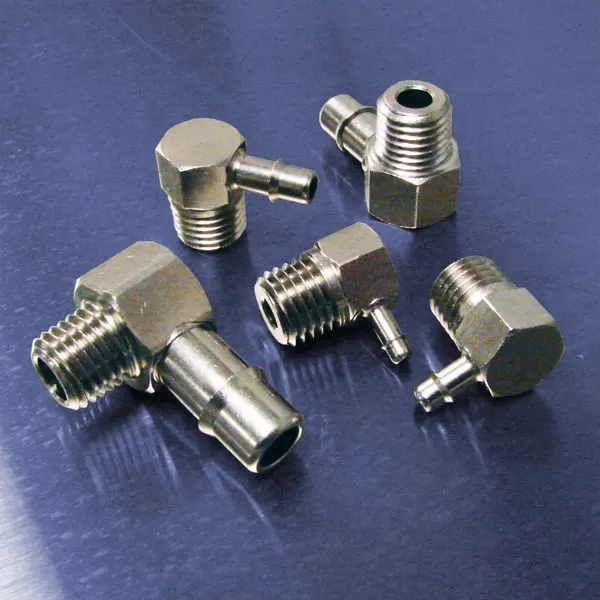

Fixed Elbows with 1/16 NPT threads are available with barb sizes ranging from 1/16 to 1/4 tube id to accommodate application requirements. Pneumadyne's Pneu-Edge® style fittings feature a consistently sharp, single-barb design which provides a tighter grip and seal than standard multiple barbs. A smaller shank behind the barb allows polyurethane tubing to relax ensuring permanent installation without the need for clamps. Our solderless joint technology eliminates pull-out potential and results in straight barb alignment.

  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
