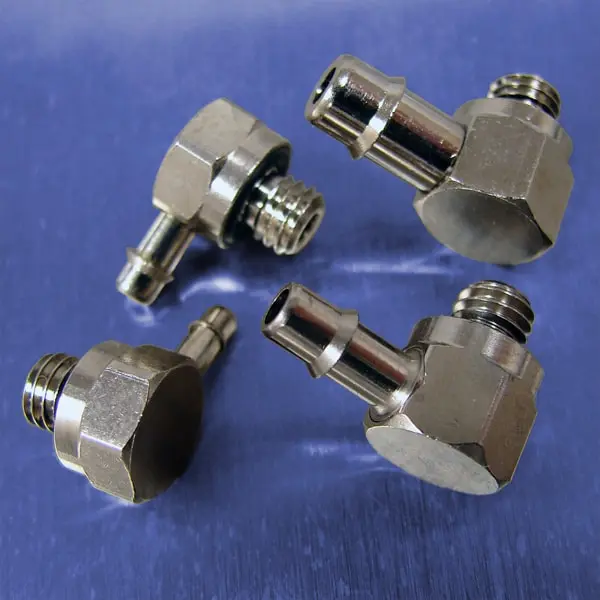

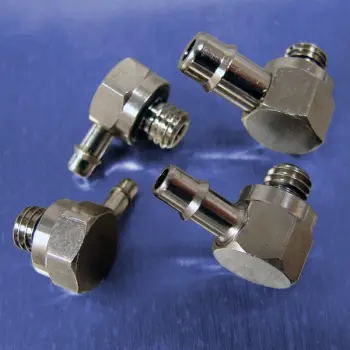

10-32 UNF Thread to Barb Elbow Fittings

Click image to enlarge

Pneumadyne's Fixed Elbows are available with six barb sizes to accommodate tubing requirements. Our single-barb design provides a tighter grip and seal than multiple barbs which ensures permanent tubing installation without the need for clamps.

These Pneu-Edge® fittings feature a solderless joint technology which eliminates pull-out potential and ensures straight barb alignment. Our captured o-ring design provides a superior seal for a leak resistant fitting.

  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
