Press Release

New Heavy Duty 2-Position Valves from Pneumadyne, Inc.

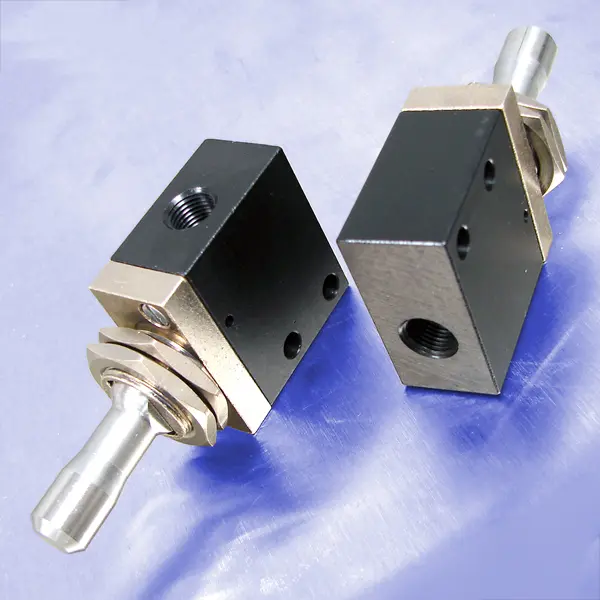

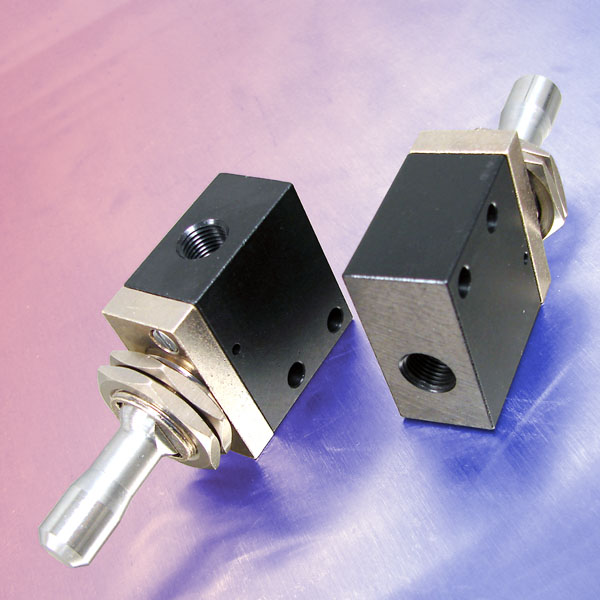

We recently modified our popular 3-Position Toggle Valve so that we could provide the 2-Position function in a heavy duty body; ideal for rugged applications. These new Heavy Duty 2-Position Valves feature a solid aluminum body and stainless steel toggle which provide the strength required to withstand harsh environments. Both the 2-way and 3-way valves have 1/8 NPT (F) ports and offer a flow rate of 41 scfm at 125 psi. For extreme conditions, heavy duty toggles are also available.

Performance Data

Operating Pressure: 0 to 125 psi
Temperature Range: -20° to 160°F
Flow Rate: 41 scfm at 125 psi
Cv: .47

Features

• 1/8 NPT (F) ports
• Heavy duty toggle available
• 2-Way or 3-Way function
• Detented & Momentary actuation
• Panel or surface mount
• Anodized for corrosion resistance

Contact us for more information about our new Heavy Duty 2-Position Valves.
