Pneumatic Solenoid Valves

Pneumatic Solenoid Valve | Miniature Solenoid Valve

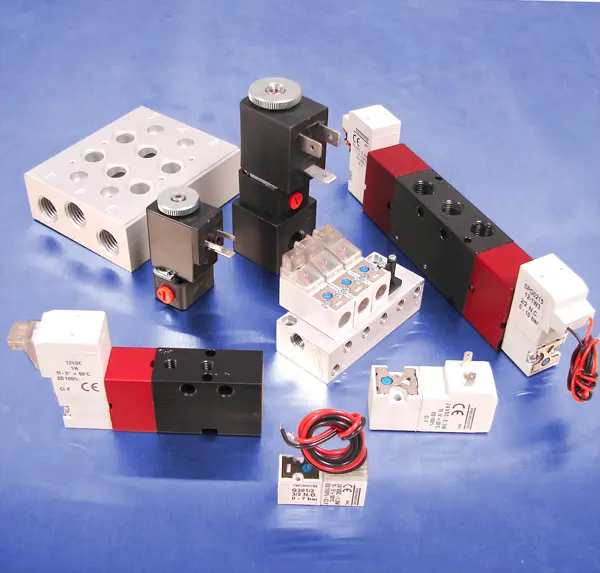

A pneumatic solenoid valve is an electromechanically-operated valve used to control air flow in a pneumatic system. Also called a solenoid air control valve, this device is controlled by an electric current through a solenoid. They are most commonly used to open or close the flow of air through a circuit. Pneumatic solenoid valves provide fast, safe switching and high reliability with low power usage. Most solenoid valves feature a compact design, making them easy to install in nearly any application.

Direct Acting Pneumatic Solenoid Valves

Pneumadyne’s direct acting pneumatic solenoid valves are a cost effective, space saving solution for the use of single or multiple valves. Our versatile offering features a variety of voltage, wattage, connector, and mounting options to make the selection and installation of solenoid air control valves for your system fast and easy. Quick response times and high flow rates make our pneumatic solenoid valves suitable for numerous applications.

Request a quote on the pneumatic solenoid valves you need, or contact Pneumadyne for more information.

Pneumadyne’s Pneumatic Solenoid Valve Options

10 mm Solenoid Air Control Valves

This miniature solenoid valve has an overall length of 1.08” and height of .52” making it the ideal choice for applications where space is limited. Our 2-way and 3-way solenoid valves feature three connector options, leads, and plug-in connectors, to simplify installation. This versatile pneumatic solenoid valve offering includes 12 and 24 Volt DC and a low watt 24 Volt DC.

15 mm Solenoid Air Control Valves

A 15 mm direct acting solenoid valve features a variety of connector, electrical, and mounting options to accommodate a variety of system requirements. 2-way and 3-way solenoid valves are offered with 12 Volt DC, 24 Volt DC, and 110 Volt AC coils. Three orifice diameters (0.8 mm, 1.1 mm, and 1.6 mm) are available to fit flow rates to your application specifications.

System 6 Solenoid Air Control Valves

System 6 solenoid valve features a wide variety of voltage options, including a low watt version (0.8 watt) that is ideal for low power control circuits. These 2-way and 3-way normally closed solenoid valves are available with spade and flying leads connectors for fast electrical connection.

System 8 Solenoid Air Control Valves

The system 8 solenoid valve features a larger orifice for applications requiring higher flow rates, 6.2 to 9.0 scfm at 125 psi. These 2-way and 3-way solenoid valves are offered with a spade connector and 12 Volt DC, 24 Volt DC, 110 Volt AC, and 220 Volt AC coils to accommodate your fluid handling requirements.

Latching Solenoid Air Control Valves

A latching solenoid valve is recommended for applications where power is limited or coil heating is unwanted; continuous power is not required to maintain the energized position. The 15 mm solenoid valve option features a 3-wire system; therefore, a relay is not required to reverse polarity. Fast response times allow for a momentary pulse to energize and de-energize the valves.

Pneumatic Solenoid Valve Manifolds & Bases

Manifolds are a cost effective solution for mounting multiple solenoid valves. Single to 12-station manifolds are available with a 10-32 (F), M5 (F), 1/8 NPT (F) or ¼ NPT (F) threads for plumbing convenience. All bases and manifolds are clear anodized for corrosion resistance.

When used in conjunction with our bases and manifolds, a Pneumadyne solenoid valve is the ideal interface between your pneumatic and electrical systems.

Pneumatic Solenoid Valves & More

Pneumadyne is a manufacturer of standard miniature pneumatic solenoid valves. We can also assist you with design and engineering of custom pneumatic components or full pneumatic control systems.

Request a quote on the pneumatic solenoid valves you need, or contact Pneumadyne for more information. Don't see what you're looking for? Contact us to discuss your custom requirements.
