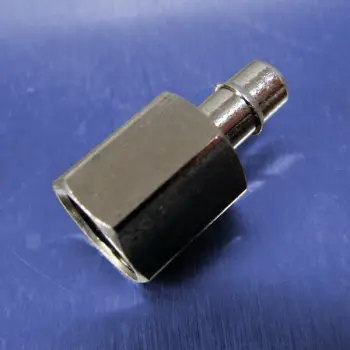

3/16 Tube Id Barb Straight Connectors (1/8 NPT F)

Click image to enlarge

Pneumadyne's barbed fittings provide a tighter grip and seal than traditional multiple barbs. The design of the single-barb design allows polyurethane tubing to relax, ensuring a permanent installation without the need for clamps. A larger thru-hole also maximizes flow. A smooth approach angle eases tubing installation.

Features
  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • Tighter grip and seal than traditional barb fittings
  • Precision machined brass fittings
  • Smoother tubing approach angle eases installation

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
