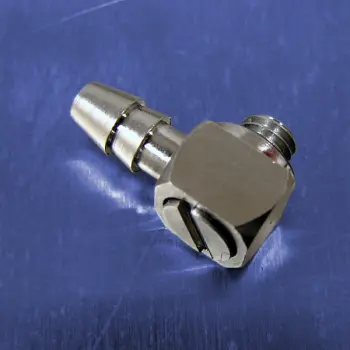

.170 Tube Id Adjustable Elbows (10-32)

.170 Tube Id Adjustable Elbows (10-32)

Adjustable Elbows are available with a hex or slot for installation convenience. The lower profile slotted version, part number EA-LB40-SLOT, is ideal for limited space applications.

Our Pneu-Edge® fittings have a single-barb design which provides a tighter grip and seal than multiple barb fittings. A smaller shank behind the barb enables polyurethane tubing to relax, ensuring permanent installation. These precision machined fittings are electroless nickel plated for corrosion resistance. The captured o-ring provides a superior seal and ensures a leak resistant fitting.

Features
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • High quality, precision machined fittings
  • Recommended for use with Polyurethane tubing

    Performance Data

    • Operating Pressure: Vacuum to 125 psi
    • Flow Rate: Download Performance Data Spec Sheet for detailed information
