Sub-Micro Valves

Sub-Micro Valves

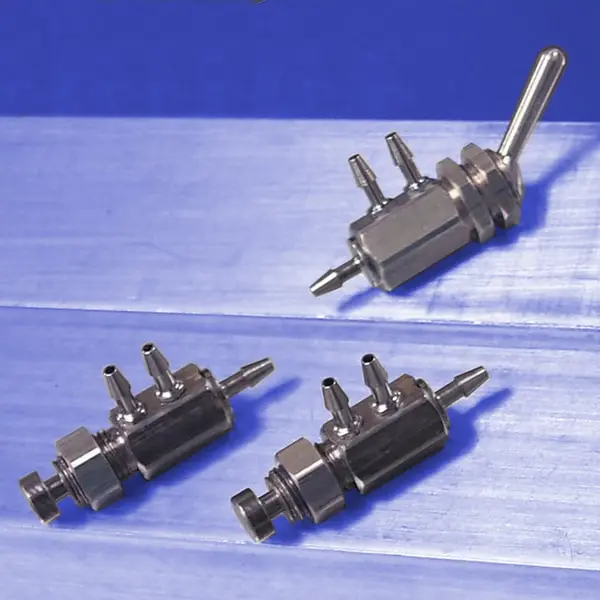

Pneumadyne's Sub-Micro valves offer a higher flow rate than similar subminiature valves in the marketplace. An impressive flow rate of 2.9 scfm at 125 psi produces a Cv of .04. In addition to accommodating vacuum applications, the versatile design allows the 3-way valves to be plumbed as normally closed or normally open (see plumbing options).

The unique design of the detented toggle offers roller ball-like actuation resulting in less wear and longer product life.

  • Metal actuators enhance the robust design
  • Ideal for use with 1/16 Id polyurethane tubing
  • Plumbing versatility
  • Electroless nickel plated for corrosion and wear resistance
  • Nuts provided for panel mounting
  • Precision machined

    Performance Data

    • Operating Pressure: 0 to 125 psi
    • Flow Rate: 2.9 scfm at 125 psi

    CAD Library
